ATX® RIG 4.0 - Offset Pull-Up Bar - 130

ATX® RIG 4.0 - Offset Pull-Up Bar - 130: More freedom for your upper body workout

Art.-Nr.: ATX-4-0-PUL-BAR-OS-130

Unique pull-up bar with overhang for maximum freedom of movement

The ATX® RIG 4.0 - Offset Pull-Up Bar - 130 is a specially shaped pull-up bar for the ATX® 4.0 RIG system, which offers significantly more freedom for exercises such as muscle-ups, classic pull-ups or suspended training thanks to its cantilevered design. Developed for demanding athletes and professional training environments, it combines stability, functionality and clever expansion options.

Versatile mounting options on the RIG

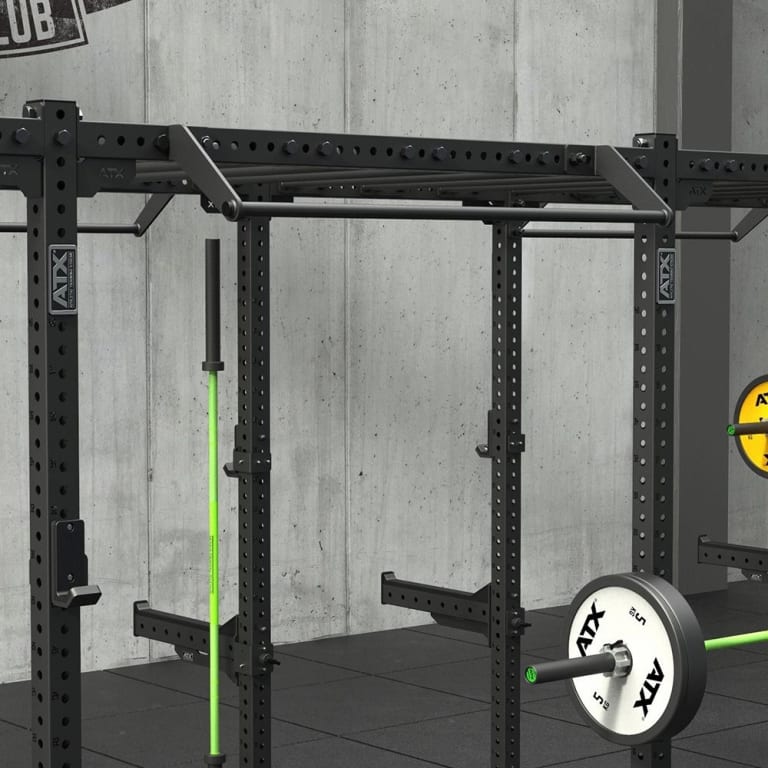

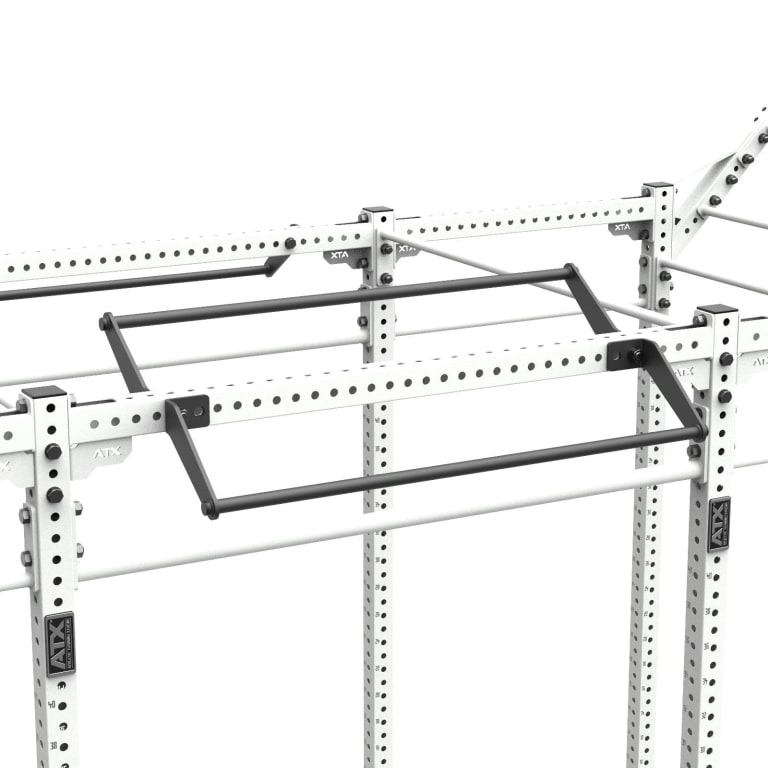

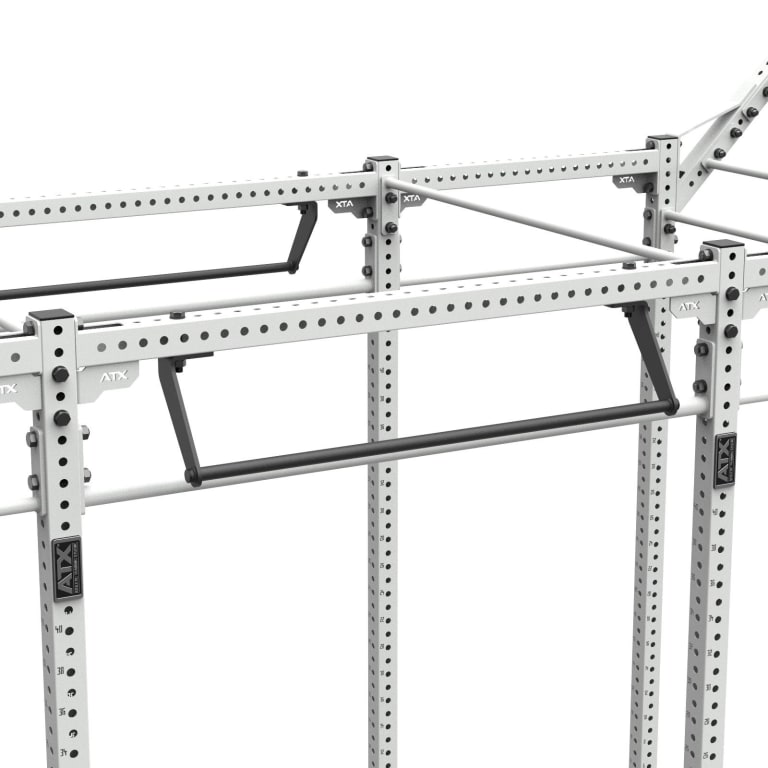

The Offset Pull-Up Bar can be flexibly attached to an existing Crossmember P8-177 and allows various positioning options - both opposite and at a 90° angle. By mounting it above the crossmember, it can also be used as an elevation, ideal for attaching suspension trainers or rings, for example.

Thanks to its special geometry, the ATX® RIG 4.0 - Offset Pull-Up Bar - 130 protrudes a full 25 cm outwards, while the horizontal offset to the center axis of the rig is 15 cm. This gives you sufficient distance to the RIG construction - perfect for complex movements without restrictions.

High-quality materials for professional use

Made from a robust round steel tube with a diameter of 32 mm and a wall thickness of 4.0 mm, the offset bar not only offers optimum support, but also the necessary load-bearing capacity. The flange plates are made of 10 mm thick sheet steel, which provides additional stability. The entire construction is powder-coated in black (RAL 9005) and has a non-slip textured surface that ensures a secure grip even during intensive workouts.

Production with laser cutting and robot welding guarantees consistently high quality and a durable finish - a standard you expect from ATX®.

Technical specifications at a glance

• Total width: approx. 135 cm
• Handle width: 130 cm
• Handle thickness: 32 mm
• Overhang: 25 cm from the front edge to the middle of the bar
• Inclination: 15 cm laterally offset to the mounting axis
• Weight: approx. 8 kg (without screws)
• Load capacity: up to 250 kg

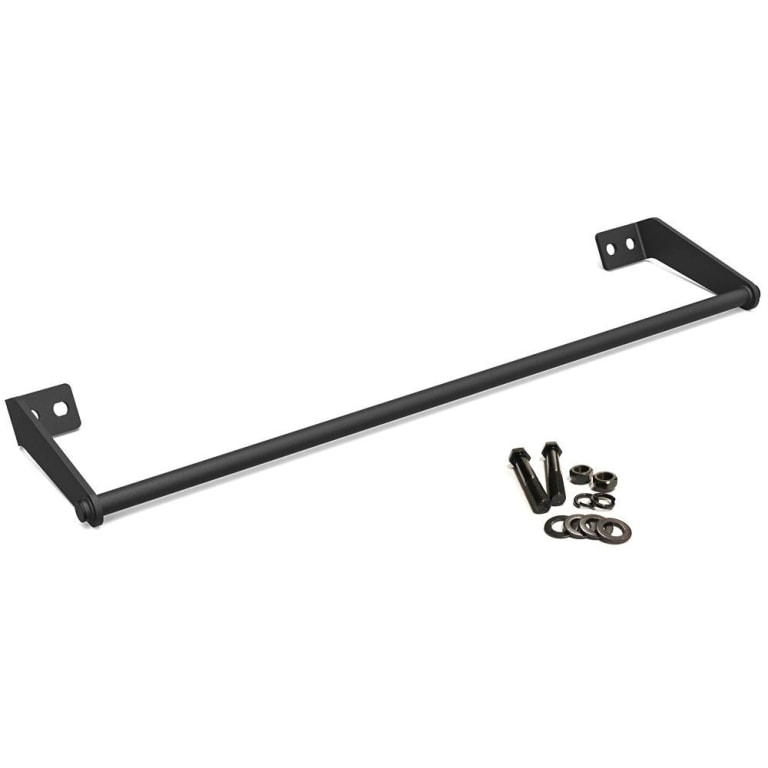

The ATX® RIG 4.0 - Offset Pull-Up Bar - 130 is supplied with a set of black galvanized screws (diameter 20 mm) and is only compatible with ATX® RIG/Rack system parts.

Why the ATX® RIG 4.0 - Offset Pull-Up Bar - 130 takes your training to a new level

This pull-up bar is not only suitable for classic pull-ups - its offset shape significantly expands your range of exercises. It enables muscle-ups with more freedom of movement, creates space for suspended training and offers additional grip height for taller athletes. If you want to expand your RIG with a professional, cleverly designed solution, the ATX® RIG 4.0 - Offset Pull-Up Bar - 130 is exactly the right choice.

We will be happy to provide you with a quote including shipping costs. Simply enquire using the contact form or call us on 0049 911 521919-10.
