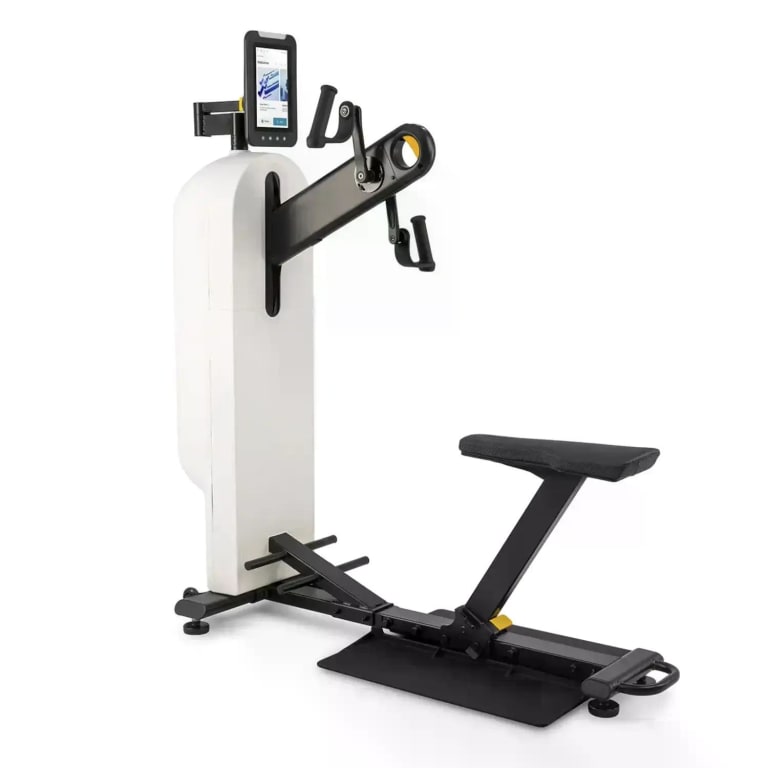

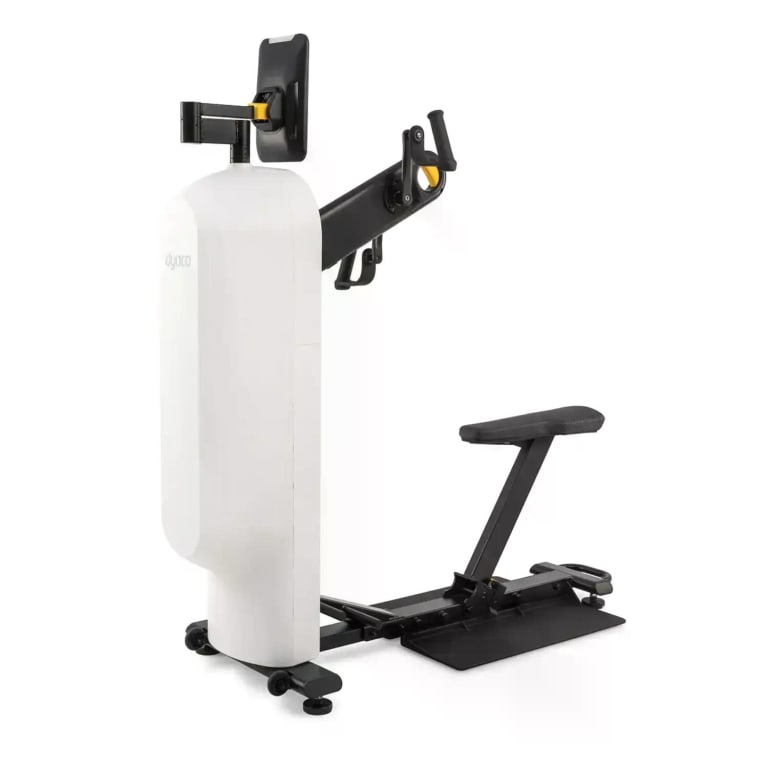

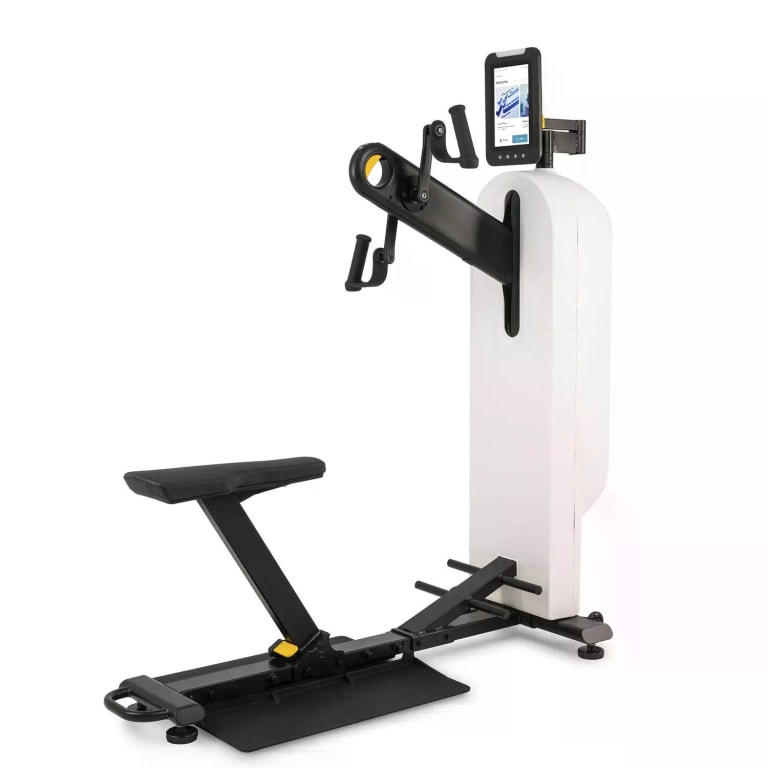

dyaco Upper-Body-Ergometer PT 5.5UE

The Dyaco Medical Upper-Body-Ergometer - 5.5UE has been specially developed to enable effective training of the upper body through coordinated and natural arm movements. It offers a versatile and effective platform for rehabilitation, tailored to the different needs of therapists and patients. With its robust construction and well thought-out features, this device helps users to improve their mobility in a gentle and targeted manner.
Ergonomic design and freedom of movement

The 5.5UE is characterized by its rotatable handles, which ensure a comfortable hand position and adapt to the natural movement of the wrist. A special feature is the bidirectional resistance, which enables cranking in both forward and reverse directions. This feature allows instant retro-cycling to diversify exercise options and target different muscle groups.
Accessibility and seating comfort

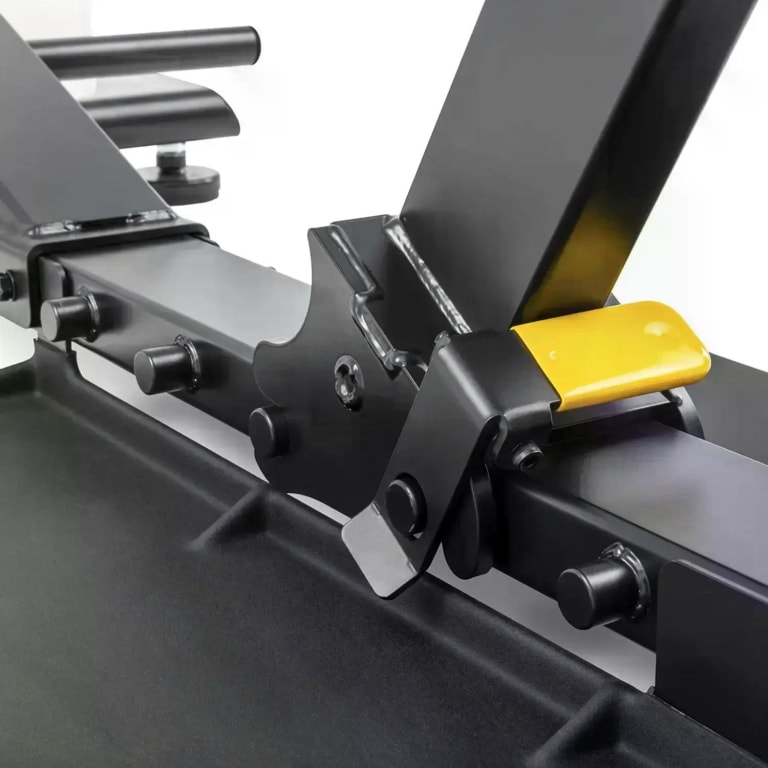

To accommodate patients of different sizes and mobility, the ergometer features a newly designed, oversized seat with adjustable positioning (forward/backward). For maximum accessibility, this seat is completely removable, allowing direct access for wheelchair users. The "step-through" design also makes it much easier for patients with limited mobility to get on and off.
Precise control and technology

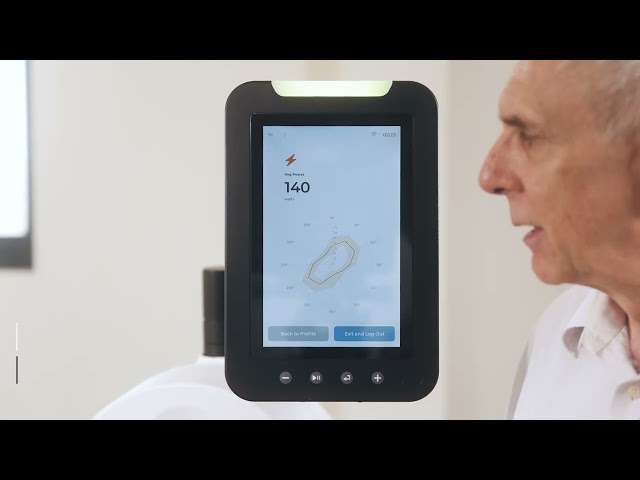

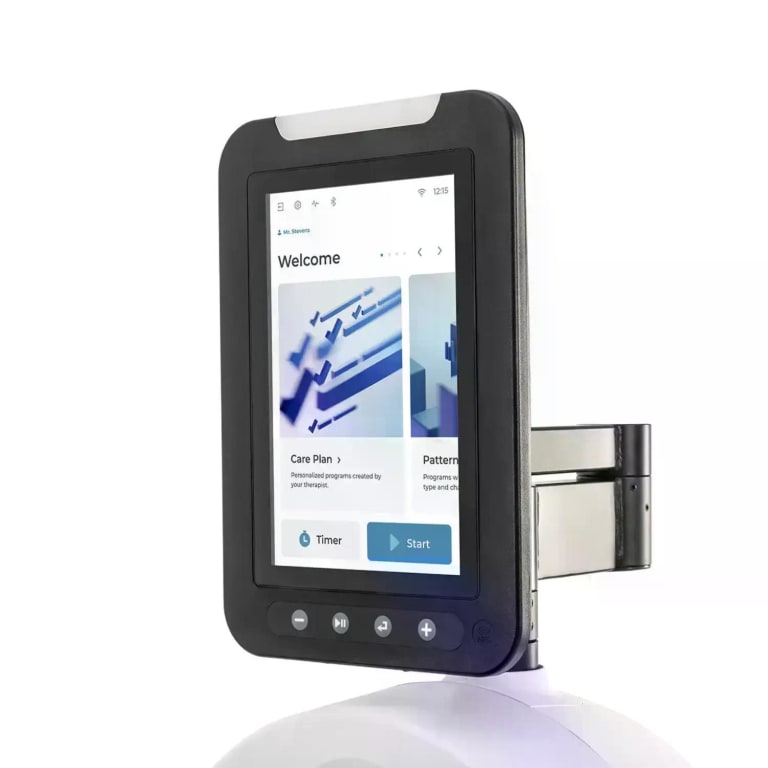

Equipped with an integrated 10.1-inch tablet computer, the 5.5UE offers a range of therapy programs as well as cloud analysis and various connectivity protocols (Bluetooth, ANT+, NFC). The exceptionally low starting resistance of just 5 watts adapts to the patient's individual movement options and ensures gentle, low-impact movements of the upper limbs and shoulders.
User-friendly handling

The multifunctional handles, which are located close to the patient, ensure easy operation in everyday clinical practice. They contain remote control buttons for easy control of the console. The position of the console itself can be adjusted horizontally by 360 degrees so that therapists and patients always have an optimal view of the screen and can read off data easily.
Technical details of the PT 5.5UE:

Product category: Upper Body Ergometer
Dimensions (L x W x H): 156 x 60 x 167.5 cm
Weight:90 kg
Maximum user weight: 180 kg
Power supply: 12 volts DC, 2.74 amps
Display:10.1 inch (1280 x 800) tablet console (portrait format)
Braking system:Magnetic resistance system
Resistance levels:1 - 30 levels
Working range (watts):5 - 800 watts (starting resistance: 5 watts)
Programs:Manual, timer, hill, plateau, heart rate target, calorie target
Crank arm length:165 mm
Heart rate receiver: yes (Bluetooth / ANT+)
Seat adjustment:Forward/backward (no height adjustment / base height from ground: 63cm), seat removable for wheelchair access
Connectivity:FTMS, ANT+, NFC
Area of application:Medical therapy, in rehabilitation centers, KG practices and fitness studios or at home
