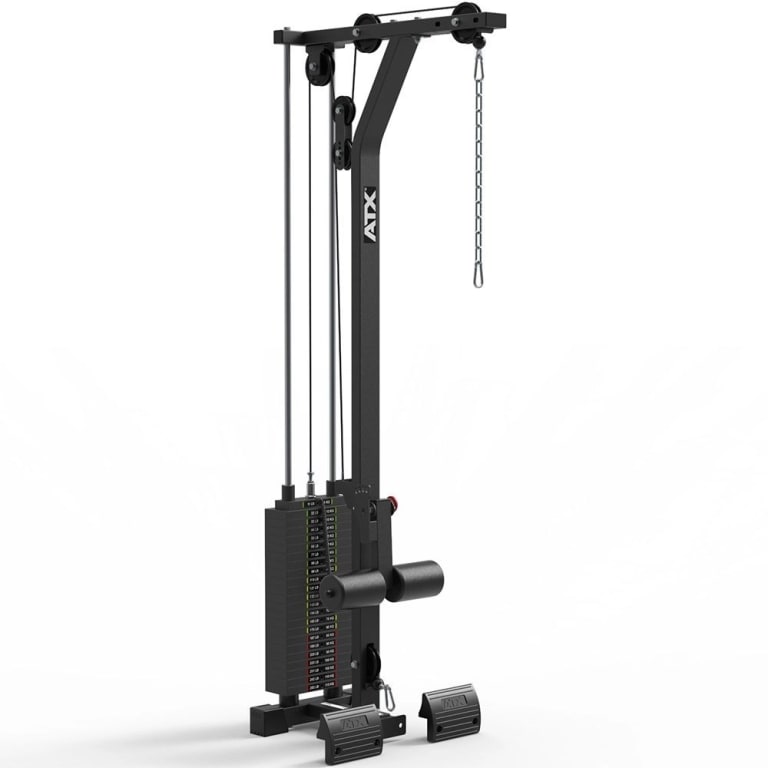

ATX® LTO-650 lat pull-down option - 115 kg plug-in weights

ATX® LTO-650 lat pull-down option - 115 kg plug-in weights

Item no.: ATX-LTO-650-SW

The ATX® lat pulldown option LTO-650 - 115 kg insertable weights is a professional extension for selected ATX® power racks, half racks and multi presses. With its integrated insertable weight system, it offers you an efficient and comfortable workout with quick weight changes and a direct transmission without loss of strength.

The lat pull-down station is compatible with the PRX-650, PRX-720, HRX-620 and MPX-620 machines, providing you with a versatile solution for lat pull-downs, rowing and numerous other pulling exercises - ideal for the studio and home gym.

Features of the ATX® lat pulldown option LTO-650 - 115 kg insertable weights

Pluggable weight system

• 115 kg total weight graduated in 5 kg increments
• Easy to reposition thanks to magnetic pins with safety cable
• Set the desired load quickly and conveniently

Training options

• Upper and lower pulley can be used without conversion
• Lat pulling, rowing and many other exercises can be performed
• Height-adjustable knee pad support for a secure hold during lat pulldowns
• Stable foot plates for support during seated rowing

Running characteristics and technique

• Direct 1:1 weight transmission - no bottle-tightening effect
• Silky-smooth movements thanks to plastic plain bearings and ball-bearing rollers
• Guide rods made of chrome-plated solid steel (Ø 20 mm)
• Stretch-free steel cables with protective sheathing
• Extension chain included for different handles and optimum pulling position
• 3 snap hooks included in the scope of delivery

Construction and load capacity

• Load capacity up to 160 kg
• Insertion dimension: 199 cm (floor to upper pulley)
• Total height: 214 cm
• Lifting dimension: 120 cm
• Weight: approx. 152.5 kg
• Material: Steel profile 80 x 40 x 2 mm
• Color: Black silk matt, fine structure coated
• With rubberized feet, non-slip and floor-friendly

Technical data

• Item number: ATX-LTO-650-SW
• Series: 600
• Weight system: 115 kg plug-in weights (23 x 5 kg)
• Load capacity: 160 kg
• Dimensions: Height 214 cm, extension 199 cm
• Equipment: Knee pads (4-way adjustable), footrests, extension chain, carabiner
• Certification: EN 20957 I.II.IV - S
• Warranty: 3 years

Scope of delivery

1 x ATX® lat pull-down option LTO-650 - 115 kg plug-in weights (item: ATX-LTO-650-SW)

Note: Delivery is disassembled including assembly instructions. Pull handles or other accessories are not included in the scope of delivery.

With the ATX® lat pull-down option LTO-650 - 115 kg insertable weights, you get a high-quality lat pull-down station with an integrated insertable weight system. The direct weight transmission, convenient handling and precise running characteristics make it the perfect addition to power racks, half racks and multi presses in the ATX® series.
