ATX® Functional WALL RIG 700 - Ladder 2

ATX® Functional WALL RIG 700 - Ladder 2

Item no.: ATX-RIG7-W-BRI-02

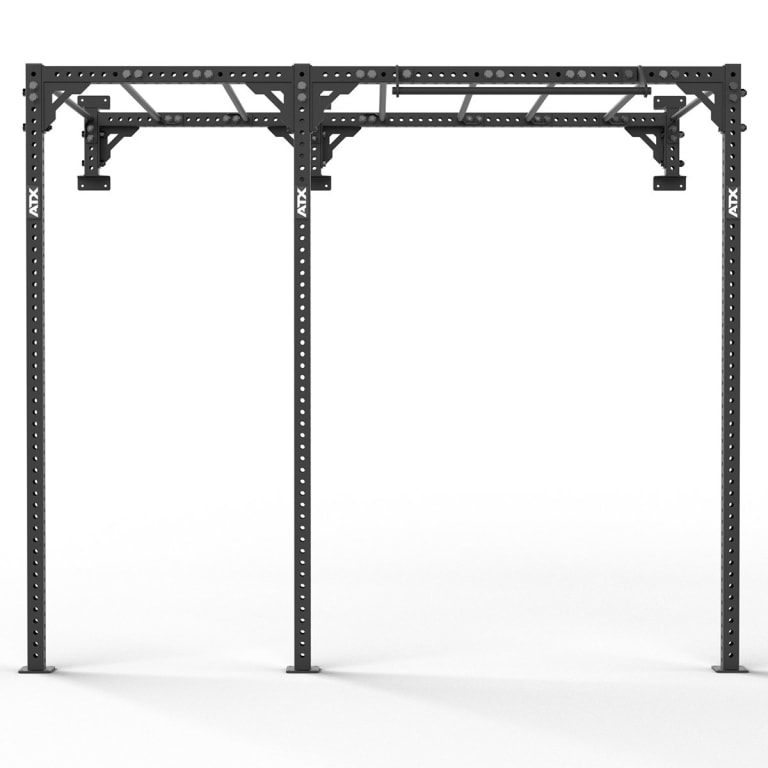

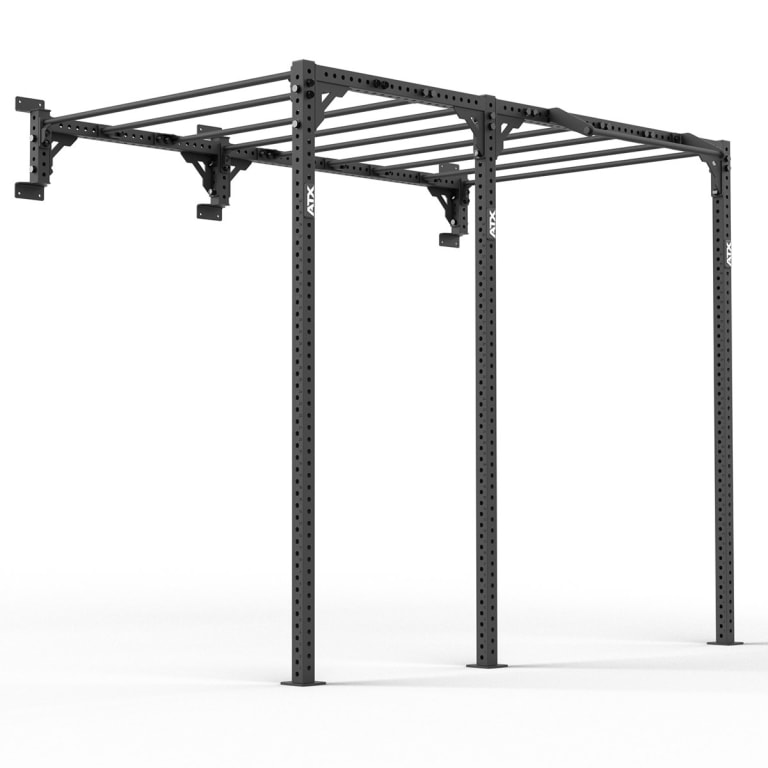

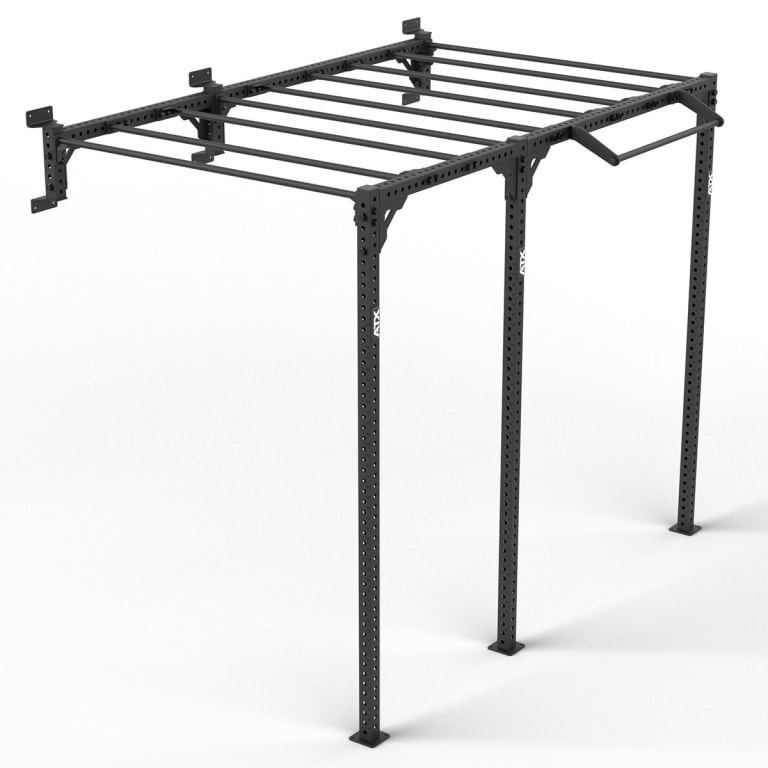

The ATX® Functional WALL RIG 700 - Ladder 2 is a space-saving, wall-mounted rig from the modular ATX® FRAME RIG SYSTEM – built for functional training, strength training and calisthenics in gyms, personal training studios or home gyms.

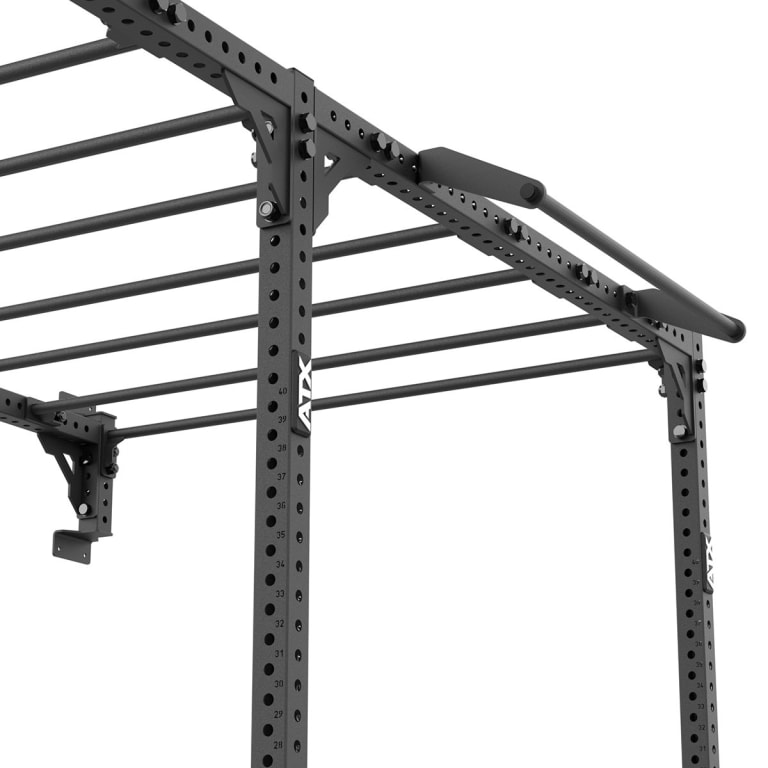

The Ladder version features numerous integrated pull-up bars across the top that can be used as monkey bars, plus wall mounts and add-on pull-up bars.

Pull-ups, muscle-ups, dips, squats, battle ropes or wall balls: with optional accessories such as J-hooks, dip bars or plate storage the rig can be expanded flexibly. The rig is fixed to the wall on one side and additionally anchored to the floor; the uprights, perforated on all sides, are joined with heavy M20 bolts.

Specifications:

• Dimensions (D x W x H): 1970 x 3070 x 2615 mm
• Weight: 144 kg
• Steel profile tube 70 x 70 mm, perforated on all sides
• Wall-mounted, floor anchoring required
• M20 bolt connections
• Numbered scale on two sides of each upright
• Base plates 14 x 14 x 1 cm with 4 holes each
• Colour: black RAL 9005, powder-coated
• Certification: EN 20957 I.II.IV – Class S (studio)

Included system parts:

• 3 x ATX-UPR-260 – Upright Tube

• 3 x ATX-WCO-700 – Wall Mount

• 2 x ATX-CRO-108 – Crossmember 108 cm

• 2 x ATX-CRO-178 – Crossmember 178 cm

• 9 x ATX-MON-178 – Integrated Pull-Up Bar 178 cm

• 1 x ATX-OSB-105 – Add-On Pull-Up Bar

Accessories such as J-hooks, dip bars or plate storage are available separately. Custom rig solutions are possible on request.

We would be happy to provide you with a quote including shipping costs. Simply ask us using the contact form or call us on 0049 911 521919-10.
